| Place of Origin: | China |
|---|---|
| Model Number: | ARH-T1750 |
| Minimum Order Quantity: | 100PCS |
| Packaging Details: | Carton, air bubble film |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 5000PCS per month |
| Material: | Q235 Steel,Metal，HDPE | Color: | Optional Color |
|---|---|---|---|
| Application: | Stadium,arena,indoor Or Outdoor,cinema | Size: | Customized Size |
| Usage: | Indoor, Outdoor, Stadium | Packing: | KD,Bubble Film |
| Feature: | Safe,folding,durable | Accessories: | Soft Cushion Is Optional |
| Key Words: | Bleacher / Retractable Bleacher / Bleacher Seats,retractable Seating System,telescopic Tribune System | Name: | Telescopic Seating/seating System/bleacher |
| High Light: | Retractable Bleacher Retractable Auditorium Seating,HDPE Retractable Auditorium Seating,Motorized Stadium Retractable Auditorium Seating |
||

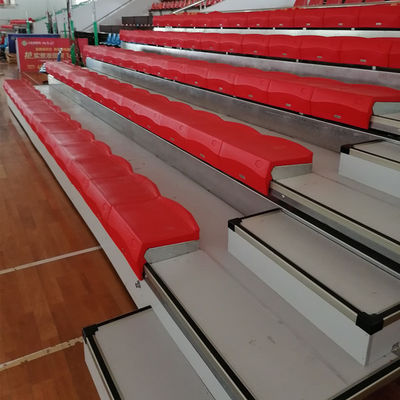

New Design Mold HDPE Retractable Bleacher Seating Retractable Auditorium Seating
Features of Retractable Bleacher Seating
The Retractable Bench Bleacher Seating occupy a very small area when they are closed.A large number of spectators could be accommodated when it opened. It's a very good choice to get multi-purpose use of the venue and economic considerations, and the limitied space could be fully used.
The Retractable Bench Bleacher Seating is easy to operate and control, flexible in function configuration, excellent in structural design, and elegant in appearance. It has the characteristics of large load capacity, reliable safety measures, accurate positioning, convenient maintenance and low noise.
Soft cushion could be optional on the bench seat.
Safety guardrails: Each set of grandstand left and right with a non-removable automatic stack rigid guardrail, rear guardrail according to the actual needs of each site, the rod body using a steel pipe welding system of 38 ×, welding by grinding, spray molding process, railings and grandstand connection is strong, the overall beauty and generous, side force 50kg/M when not deformed, loose.
Controlling of Retractable Bleacher Seating
The telescopic drive device is decelerated by an asynchronous motor (380V) through a cycloid pinwheel reducer, and then drives a polyurethane friction drive wheel with a diameter of 160 mm and a width of 60 mm through a sprocket chain, which can provide a walking speed of 4.5 meters per minute.
Limit switch: Equipped with two limit switches (on and off) for the overall power system. When the grandstand chair reaches the fully extended or retracted position, the limit switch will automatically turn off the overall power system. Power operation combines contactors and limit switches to ensure that the circuit is not energized during operation
| Specifications | |
| Product | Retractable bleacher/Telescopic bleacher/Bench bleacher seating |
| Material | Chair: HDPE Bench Seat |
| Structure Frame: Cold roll steel dealt with powder coating | |
| Flooring: 18mm plywood with anti-slip finish or covered by carpet, Or alumium floor | |
| Safety Railing: Steel with powder coating or Stainless steel is optional | |
| Chair Type | Bench chair |
| Installation Type | Floor mounted type |
| Bleacher Type | Manual/Ful-motorized |
| Operation | Wire control or remote control (Moterized type) |
| Color of Steel Structure | Black or Grey |
| Railings | Safety Railing on two sides of the bleacher, backside railing is optional |
| Step Height | 260mm,280mm,300mm |
| Step Width | 700-900mm |
| Stair Step Width | 800-1000mm |
| Packing | PP woven bag, Carton, Air bubble film |
| MOQ | 100 seats per set |
| Delivery Time | 25-30 days according to the quantity |
| Application | Stadium, Conference Hall, Theatre, etc. |
Description of retractable bleachering seating motor and power system:
(1) During operation, it can cooperate with a movable control switch to perform forward and backward.
(2) Imported deceleration motor is used to drive gear transmission, and the special wide PU friction wheel is used to rub against the floor to promote the movement of the stands. All motors in each part realize the expansion and contraction of independent modules, and special codes are equipped to ensure parallel between modules. Each code is controlled by a computer system.
(3) The driving system can ensure that when encountering ground defects and obstacles, it provides sufficient power and does not run off the track.
Drive mechanism:
Electric control type, with infrared remote control and limited manual control. It adopts imported three-phase geared motor with electric power of 0.55KW and voltage of 380V. It has the characteristics of large reduction ratio, high efficiency, low noise, few failures and long life. The anti-deflection device is installed to ensure that the movable stand can be easily extended and contracted without deviation. The telescopic mechanism is flexible, has low working noise and does not scratch the floor.
It can be matched with a variety of styles of seats: low back, high back folding plastic seats, folding soft-pack seats, seats with armrests, etc., styles are optional. The plastic seat material is: high-density polyethylene (HDPE), the soft seat material: fireproof fiber + ergonomic memory foam.
