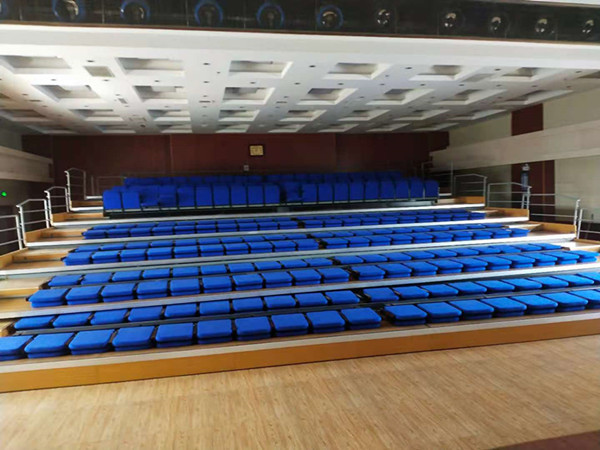

Cold Rolled Steel Folding Bleacher Seats / Theatre Retractable Tiered Seating

Basic Information
Place of Origin: China
Model Number: ARH-T1765
Minimum Order Quantity: 100PCS
Price: USD115-180/pcs
Packaging Details: Carton, air bubble film
Delivery Time: 30 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000PCS per month
Detail Information
Material: Q235 Steel,Metal,HDPE Color: Customized Color
Size: Customized Size Packing: KD, Air Bubble Film
Product Name: Telescopic Bleacher Seating, Telescopic Grandstand Key Words: Bleacher / Retractable Bleacher /telescopic Bleacher
Feature: Plywood Backrest Armrest: Yes
Foldable: Yes Operation: Manual Or Motorized
Remote Control: Yes
High Light:

Cold Rolled Steel Folding Bleacher Seats


Cold Rolled Steel Retractable Tiered Seating


Theatre Retractable Tiered Seating

Product Description

Cold Roll Steel Rise Mounted Folding Telescopic Bleacher Seating


Feature of Telescopic Bleacher Seating : Most of the telescopic tribune seating are placed in the conference hall, auditorium hall and  stadium, gym, or some pubilc sport center. It can be closed and opened by electric control.

Telescopic Bleacher Structure: cold-rolled steel rear cross beam,front cross beam and brace beam dealt with powder coating.
Q235 Steel plate framework is One-batch forming.




Telescopic Bleacher Seating

Material Chair: Cold molded foam chair
Structure Frame: Cold roll steel dealt with powder coating,grey color
Flooring: 18mm plywood with anti-slip finish or covered by carpet, Or alumium floor
Safety Railing: Steel with powder coating or Stainless steel is optional
Chair Type Foldable Arm chair
Installation Type Floor mounted type
Bleacher Type Manual/Semi-Motorized/Ful-motorized
Operation Wire control or remote control (Moterized type)
Color of Steel Structure Black or Grey
Railings Safety Railing on two sides of the bleacher, backside railing is optional
Step Height 260mm,280mm,300mm
Step Width 700-900mm
Stair Step Width 800-1000mm
Packing PP woven bag, Carton, Air bubble film
MOQ 100 seats per set
Delivery Time 25-30 days according to the quantity
Application Stadium, Conference Hall, Theatre, School, Exhibition Center,etc.



Cold Rolled Steel  Folding Bleacher Seats / Theatre Retractable Tiered Seating 0Cold Rolled Steel  Folding Bleacher Seats / Theatre Retractable Tiered Seating 1Cold Rolled Steel  Folding Bleacher Seats / Theatre Retractable Tiered Seating 2


The design requirements of the Telescopic​ Bleacher Seating


(1) In addition to the weight of the seat itself, the grandstand also satisfies the load: the dynamic load per square meter is 450kg; the length of each meter can bear the left and right swing load 36kg.

(2) The guardrail design meets the following horizontal forces: the top can withstand 65kg per meter, and the middle of the guardrail can withstand 135kg per meter

(3) The Telescopic Bleacher can withstand a rated load of 200 kg per seat.

(4) There are safe railings on both sides of the telescopic bleacher, and the surface is dealt with powder coating, the type of railing could be chosen wit plugged type or unplugged type.

(5) The front of the retractable bleacher has a beautiful appearance, and there are anti-skid strips on the bleacher to prevent the audience from slipping up and down.


Telescopic bleacher System material description


(1) Casters: The inner layer adopts double ball bearings, the middle is a nylon layer, and covered with a high toughness time-grinding polynitrogen layer, which can withstand great force without wearing the floor.


(2) The driving wheel has multiple reinforced rubber structures, which can easily overcome ground defects.


(3) Travelling wheel frame: The number of Travelling wheel frame in each row can be set according to the size and requirements of the site. Each Travelling wheel frame is equipped with 4 casters.


(4) Bleacher structure: It adopts a composite structure, and the material is alloy steel. There must be no welding in the middle of the rods of all load-bearing parts. The thickness of the supporting steel plate is> 3mm, which is connected by high-strength positioning profiles. It can increase the strength and toughness of the material, improve the mechanical properties of the material, and enhance the stability of the structure. The size of the load-bearing beam is 50x40x3, the column is 100x50x3, and the main beam is made of 190×50×3 inner coiled profile at one time, and national standard high-strength bolts are used for on-site riveting (all screws and nuts are standard parts), which improve the previous welding disadvantages. Not only has a good corrosion performance and stability, but also has a smooth and clean outer surface.

The cantilever beam adopts 60×40×3.0 inner coiled profiles, which are the main structural elements for the wooden flooring. The support parts between the support frames can also be used for the main beam to eliminate sliding friction.


(5) Pedal: It is made of 18mm thick high-strength laminate composite fireproof board.


(6) The front frame adopts special aluminum-titanium alloy edging and special anti-skid lines to increase the strength of the frame and prevent the audience from slipping while walking. Compared with the general inlaid rubber and plastic strips, it has some advantages such as wear, no aging, no slippage.


(7) Synchronous telescopic device: It is composed of a synchronous shaft, a transmission chain and a side roller to ensure a balanced linear motion during expansion and braking.


(8) Bleacher seats: Soft cushion chairs use high density cold molded foam and high quality fabric.


(9) The steel components are all pickled and phosphated and then powder coating on the automatic spraying line to enhance their corrosion resistance.


Description of motor and power system of Telescopic Bleacher Seating

(1) During operation, it can cooperate with a movable control switch to perform forward and backward.

(2) The sprocket is driven by a motor.

(3) Wireless remote control is for option.
