Plywood Backrest Electrical Telescopic Bleacher Seating With Arm

Basic Information
Place of Origin: China
Model Number: ARH-T1765F
Minimum Order Quantity: 100PCS
Price: USD115-180/pcs
Packaging Details: Carton, air bubble film
Delivery Time: 30 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000PCS per month
Detail Information
Material: Q235 Steel,Metal,HDPE Color: Customized Color
Size: Customized Size Packing: KD, Air Bubble Film
Product Name: Telescopic Bleacher Seating, Telescopic Grandstand Key Words: Bleacher / Retractable Bleacher /telescopic Bleacher
Feature: Plywood Backrest Armrest: Yes
Foldable: Yes Operation: Manual Or Motorized
Remote Control: Yes
High Light:

Electrical Telescopic Bleacher Seating

,

Plywood Backrest Telescopic Bleacher Seating

,

Plywood Backrest electric bleachers


Product Description

Floor Mounted Electrical Telescopic Bleacher Seating With Arm



Feature of Telescopic Bleacher Seating : Most of the telescopic tribune seating are placed in the conference hall, auditorium hall and  stadium, gym, or some pubilc sport center. It can be closed and opened by electric control.


Telescopic Bleacher Structure: cold-rolled steel rear cross beam,front cross beam and brace beam dealt with powder coating.
Q235 Steel plate framework is One-batch forming.



Description of motor and power system of Telescopic Bleacher Seating:



(1) During operation, it can cooperate with a movable control switch to perform forward and backward.



(2) Imported deceleration motor is used to drive gear transmission, and the special wide PU friction wheel is used to rub against the floor to promote the movement of the stands. All motors in each part realize the expansion and contraction of independent modules, and special codes are equipped to ensure parallel between modules. Each code is controlled by a computer system.



(3) The driving system can ensure that when encountering ground defects and obstacles, it provides sufficient power and does not run off the track.



Drive mechanism: Electric control type, with infrared remote control and limited manual control. It adopts imported three-phase geared motor with electric power of 0.55KW and voltage of 380V. It has the characteristics of large reduction ratio, high efficiency, low noise, few failures and long life. The anti-deflection device is installed to ensure that the movable stand can be easily extended and contracted without deviation. The telescopic mechanism is flexible, has low working noise and does not scratch the floor.



It can be matched with a variety of styles of seats: low back, high back folding plastic seats, folding soft-pack seats, seats with armrests, etc., styles are optional. The plastic seat material is: high-density polyethylene (HDPE), the soft seat material: fireproof fiber + ergonomic memory foam.



In addition to the weight of the seat itself, the stand should also meet the following loads: dynamic load per square meter of 450kg; per meter length can withstand a swing load of 36kg;



Fixed railings are used on both sides of the stands, which are made of steel material (matt), and there is no need to plug and unplug when the stands are stowed. The guardrail design meets the following horizontal forces: the top end meets the requirements of 65kg per meter, the middle of the guardrail meets the requirements of 135kg per meter, and the lateral force 50Kg/m does not loosen or deform.



The Telescopic Bleacher Seating can withstand a rated load of 140 kg per seat.





Specifications
Product

Telescopic Bleacher Seating

Material Chair: Cold molded foam chair
Structure Frame: Cold roll steel dealt with powder coating,grey color
Flooring: 18mm plywood with anti-slip finish or covered by carpet, Or alumium floor
Safety Railing: Steel with powder coating or Stainless steel is optional
Chair Type Foldable Arm chair
Installation Type Floor mounted type
Bleacher Type Manual/Semi-Motorized/Ful-motorized
Operation Wire control or remote control (Moterized type)
Color of Steel Structure Black or Grey
Railings Safety Railing on two sides of the bleacher, backside railing is optional
Step Height 260mm,280mm,300mm
Step Width 700-900mm
Stair Step Width 800-1000mm
Packing PP woven bag, Carton, Air bubble film
MOQ 100 seats per set
Delivery Time 25-30 days according to the quantity
Application Stadium, Conference Hall, Theatre, School, Exhibition Center,etc.

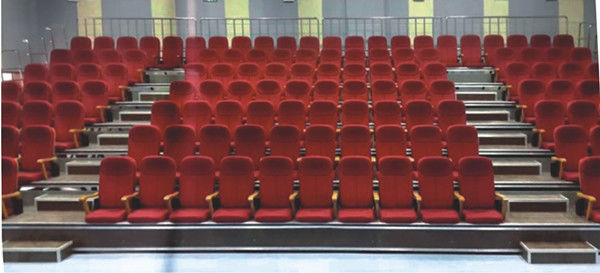

Plywood Backrest Electrical Telescopic Bleacher Seating With Arm 0Plywood Backrest Electrical Telescopic Bleacher Seating With Arm 1Plywood Backrest Electrical Telescopic Bleacher Seating With Arm 2
