Galvanized Flooring LED Step Retractable Stadium Seating Movable

Basic Information
Place of Origin: China
Model Number: ARH-T1769
Minimum Order Quantity: 100PCS
Price: USD110-160/pcs
Packaging Details: Carton, air bubble film
Delivery Time: 30 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000PCS per month
Detail Information
Material: Q235 Steel,Metal,HDPE Color: Customized Color
Accessories: Guardrail,aisle With Handrail,handrail,wheelchair Ramp,backrest Origin: Chongqing China
Application: Stadium,arena,etc. Size: Optional,Customized Size
Usage: Entainment,School,indoor Or Outdoor Use Product Name: Indoor Gym Tribune,Factory Production Dismountable Bleacher Seating,Stadium Seating
Key Words: Bleacher / Retractable Bleacher / Bleacher Seats,retractable Seating System,retractable Seat/retractable Chair/retractable Tribune Type: Manual/ Electric,Movable,Hot Dipped Galvanized High Tensile Strength Steel Structure
Feature: Folding,durable Packing: Bubble Wrap,air Bubble Film Or Carton
Seat Material: High Grade HDPE Seat With Steel Frame Row Height: 300mm
High Light:

LED Step retractable stadium seating

,

Galvanized Flooring retractable stadium seating

,

LED Step retractable gym bleachers


Product Description

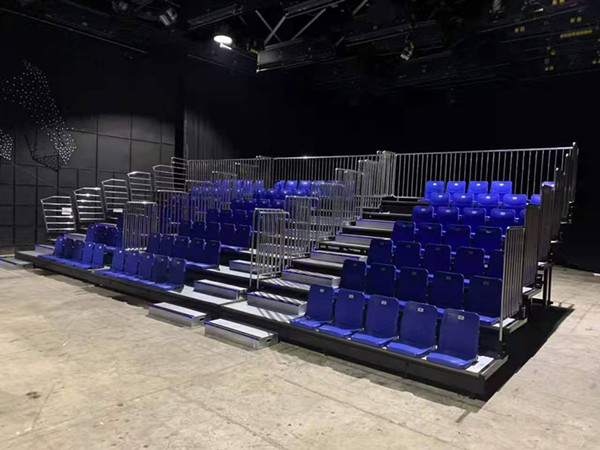

Galvanized Flooring LED Step Movable Retractable Bleacher Seating


Feature of Retractable Bleacher Seating

The telescopic grandstand system could save the space where you need to carry out multiple events in the limited area.

This bleacher could be assembled as you need, the length could be change by adjusting the quantity of sets.

The retractable stadium bleacher seating has LED lights, suitable for studio use.
Bleacher Seat design is comfortable,complied with ergonomics.

1. Stand support is cold-drawn and formed of excellent carbon steel plate, which can increase the strength and toughness of the material, improve the mechanical properties of the material, and enhance the stability of the structure. Due to the various sizes of the stands, the final size is determined by the size of the actual venue and the type of seats. The seat width and low back seats of the stands are 700mm, and the floor height is 300mm. The stands are completely covered, especially the two sides are covered with 3mm thick steel plates, the surface connection and painting are completely smooth, and the final effect surface is a whole. The back of the stand is arranged with honeycomb aluminum panels, and the bottom counter board is used. The finished aluminum plate retains the "mirror" polishing effect.
2. Cart and load-bearing wheels: The cart includes a 100×50×3mm column, 130×50×3mm feet, and is equipped with an anti-bending system with anti-friction bearing components. The load-bearing wheel adopts a wide wheel, and the large caster wheel adopts an outer high-strength polyurethane PU wheel with a diameter of 125mm and a spoke of B=40mm. It has sufficient load-bearing strength and appropriate elasticity. The inner layer adopts double ball bearings and the middle is The nylon layer is covered with a high-toughness and wear-resistant polyurethane layer, which can withstand heavy loads and can rotate flexibly, with little friction, and does not damage the wooden floor. The wheels of the stands are distributed in multiple rows, and each row is uneven, which can reduce the stand against the wooden floor. The stress can prolong the service life of the wooden floor.
3. Load-bearing beam: The size of the load-bearing beam is 50×40×3mm, 100×50×3mm, which is installed at a center distance of about 70cm and welded between the main beam and the auxiliary beam. The cold-rolled steel plate with sufficient bearing capacity is used, and after folding, it is sprayed to make it not only has good corrosion resistance, but also has a smooth and clean outer surface. The secondary beam has a size of 50×35×2 and serves as the end element for all wooden support arms and walking surfaces. The supporting arms between the supporting frames are applied to the main beam to eliminate sliding friction and lubricate the rollers and nails through the action of the mechanical surface.
4. Tighten the sling: the system is anchored on the foundation of the cart column through diagonal supports, close to the center of the rear beam, and each row of diagonal supports is arranged in pairs, consisting of a 40×25×2.5mm closed part, and a horizontal element at the bottom. The size is opposite to the diagonal support, connecting the pillar and the bottom of the cart, and is fixed on the top of the support.
5. Movable steps Movable step keel is supported by high-quality carbon steel profile welding. Each layer is equipped with a 700mm*350mm*150mm box-shaped step and a row number sign. The surface layer adopts 18mm high-strength veneer laminate (17mm laminate + 1mm trihydrogen ammonia board) aluminum alloy decorative profile edging, so that the pedal has both high strength and beautiful outer surface, and the surface has a fireproof function, which can withstand such Cigarette butts and other open flames. The surface layer is fixed by rivets and auxiliary stands of the stands to ensure the high strength and structural stability of the movable steps.
6. ​​Decorative profiles The stand surface is covered with a special aluminum-titanium alloy, with special non-slip lines attached to increase the strength of the profile and prevent the audience from slipping when walking. The surface layer adopts 18mm high-strength veneer laminate (17mm laminate + 1mm trihydrogen ammonia board) aluminum alloy decorative profile edging, and the front of the stand bed frame adopts a special aluminum-titanium alloy profile to increase the bearing strength. At the same time, the front edge is inlaid with non-slip and wear-resistant rubber and plastic strips, so that they will not fall off, and have the effect of protecting the aluminum-titanium alloy strips and preventing the audience from slipping, which is both beautiful and practical.
7. The synchronization mechanism is composed of double-layer guide bearings and side rollers to ensure that the stands make a balanced linear movement during expansion and contraction, reducing the friction of the stands. Through the self-locking mechanism, it is ensured that the surface layers of the stands are stretched and synchronized in sequence.


Specifications
ProductMovable Retractable Stadium Seating
MaterialChair: HDPE chair , Durable
Structure Frame: Cold roll steel dealt with powder coating,grey color
Flooring: 18mm plywood with anti-slip finish or covered by carpet, Or alumium floor
Safety Railing: Steel with powder coating or Stainless steel is optional
Chair TypeFoldable chair
Installation TypeFloore mounted type or Rise mounted type
Bleacher TypeManual/Semi-Motorized/Ful-motorized
OperationWire control or remote control (Moterized type)
Color of Steel StructureBlack or Grey
RailingsSafety Railing on two sides of the bleacher, backside railing is optional
Step Height260mm,280mm,300mm
Step Width700-900mm
Stair Step Width800-1000mm
PackingPP woven bag, Carton, Air bubble film
MOQ100 seats per set
Delivery Time25-30 days according to the quantity
ApplicationStadium, Conference Hall, Theatre, etc.



Galvanized Flooring LED Step Retractable Stadium Seating Movable 0Galvanized Flooring LED Step Retractable Stadium Seating Movable 1Galvanized Flooring LED Step Retractable Stadium Seating Movable 2Galvanized Flooring LED Step Retractable Stadium Seating Movable 3

Why Choose Us?

Honest merchants: We insist on strict control of product quality, rely on quality to expand the market, and encourage technological innovation.

Quality Assurance: Over the years, we have been trusted by customers with stable products, timely delivery, and excellent after-sales service. We have a broad market and a good reputation.

Price commitment: In order to ensure the reliability of the product, all materials selected are high-quality steel. Under the same competitive conditions, on the basis of not reducing the technical performance of the product, we will sincerely provide it at a preferential price.

FAQ

1.Can you do OEM?
Yes, we do OEM according to clients’ requirements.

2.What’s your lead time?
It’s according to the quanity. Usually 25-30 days based on MOQ quantity.

2.Can you provide samples?
Yes, we could provide samples with the sample charge, but it will be refund if you place the mass production order.

4.What’s your delivery port?
From Chongqing, Shanghai, Guangzhou or Shenzhen

5.What’s your payment terms?
TT transfer is preferred.

6.Do you have color choice?
Yes, we have multi colors for the clients.
