| Place of Origin: | China |
|---|---|
| Model Number: | ARH-T1769 |
| Minimum Order Quantity: | 100PCS |
| Price: | USD110-160/pcs |
| Packaging Details: | Carton, air bubble film |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 5000PCS per month |
| Origin: | Chongqing China | Application: | Stadium,arena,etc. |
|---|---|---|---|
| Size: | Optional,Customized Size | Usage: | Entainment,School,indoor Or Outdoor Use |
| Feature: | Folding,durable | Packing: | Bubble Wrap,air Bubble Film Or Carton |
| Seat Material: | High Grade HDPE Seat With Steel Frame | Row Height: | 300mm |
| Manual Operation: | Optional | Movable: | Yes |
| Type: | Layher Structure,manual/ Electric,Other Furniture | ||
| High Light: | Green Chair Retractable Bleacher Seating,Customized Size Retractable Bleacher Seating,Green Chair retractable gym bleachers |
||

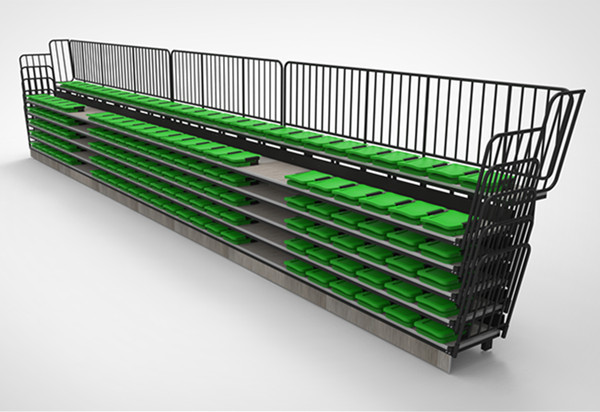

Green Color Floor Mounted Foldable Retractable Bleacher Seating
Feature of Retractable Bleacher Seating:
The telescopic grandstand system could save the space where you need to carry out multiple events in the limited area.
This bleacher could be assembled as you need, the length could be change by adjusting the quantity of sets.
Bleacher Seat design is comfortable,complied with ergonomics.
1. Load-bearing beam: The size of the load-bearing beam is 50×40×3mm, 100×50×3mm, which is installed at a center distance of about 70cm and welded between the main beam and the auxiliary beam. The cold-rolled steel plate with sufficient bearing capacity is used, and after folding, it is sprayed to make it not only has good corrosion resistance, but also has a smooth and clean outer surface. The secondary beam has a size of 50×35×2 and serves as the end element for all wooden support arms and walking surfaces. The supporting arms between the supporting frames are applied to the main beam to eliminate sliding friction and lubricate the rollers and nails through the action of the mechanical surface.
2. Tighten the sling: the system is anchored on the foundation of the cart column through diagonal supports, close to the center of the rear beam, and each row of diagonal supports is arranged in pairs, consisting of a 40×25×2.5mm closed part, and a horizontal element at the bottom. The size is opposite to the diagonal support, connecting the pillar and the bottom of the cart, and is fixed on the top of the support.
5. Movable steps Movable step keel is supported by high-quality carbon steel profile welding. Each layer is equipped with a 700mm*350mm*150mm box-shaped step and a row number sign. The surface layer adopts 18mm high-strength veneer laminate (17mm laminate + 1mm trihydrogen ammonia board) aluminum alloy decorative profile edging, so that the pedal has both high strength and beautiful outer surface, and the surface has a fireproof function, which can withstand such Cigarette butts and other open flames. The surface layer is fixed by rivets and auxiliary stands of the stands to ensure the high strength and structural stability of the movable steps.
3. Decorative profiles The stand surface is covered with a special aluminum-titanium alloy, with special non-slip lines attached to increase the strength of the profile and prevent the audience from slipping when walking. The surface layer adopts 18mm high-strength veneer laminate (17mm laminate + 1mm trihydrogen ammonia board) aluminum alloy decorative profile edging, and the front of the stand bed frame adopts a special aluminum-titanium alloy profile to increase the bearing strength. At the same time, the front edge is inlaid with non-slip and wear-resistant rubber and plastic strips, so that they will not fall off, and have the effect of protecting the aluminum-titanium alloy strips and preventing the audience from slipping, which is both beautiful and practical.
| Specifications | |
| Product | Retractable Bleacher Seating |
| Material | Chair: HDPE chair , Durable |
| Structure Frame: Cold roll steel dealt with powder coating,grey color | |
| Flooring: 18mm plywood with anti-slip finish or covered by carpet, Or alumium floor | |
| Safety Railing: Steel with powder coating or Stainless steel is optional | |
| Chair Type | Foldable chair |
| Installation Type | Floore mounted type or Rise mounted type |
| Bleacher Type | Manual/Semi-Motorized/Ful-motorized |
| Operation | Wire control or remote control (Moterized type) |
| Color of Steel Structure | Black or Grey |
| Railings | Safety Railing on two sides of the bleacher, backside railing is optional |
| Step Height | 260mm,280mm,300mm |
| Step Width | 700-900mm |
| Stair Step Width | 800-1000mm |
| Packing | PP woven bag, Carton, Air bubble film |
| MOQ | 100 seats per set |
| Delivery Time | 25-30 days according to the quantity |
| Application | Stadium, Conference Hall, Theatre, etc. |
Applicable places of retractable bleacher seating: suitable for indoor and outdoor sports fields, playgrounds, large, medium and small gyms, school basketball courts, football fields, badminton courts, multi-functional auditoriums, TV studios, theaters, cinemas, temporary performance venues, equestrian fields, Playground etc. The overall structure is firm, the load-bearing performance is good, one thing is multi-purpose, it can be opened when used, and can be put away when it is not used, which can save space to a greater extent and increase the use space of the site.
FAQ
1. Can you do OEM?
Yes, we do OEM according to clients’ requirements.
2.What’s your lead time?
It’s according to the quanity. Usually 25-30 days based on MOQ quantity.
3.Can you provide samples?
Yes, we could provide samples with the sample charge, but it will be refund if you place the mass production order.
4.What’s your delivery port?
From Chongqing, Shanghai, Guangzhou or Shenzhen
5.What’s your payment terms?
TT transfer is preferred.
6.Do you have color choice?
Yes, we have multi colors for the clients.
